VTRF 15-3 Venturi pneumatic conveyor – conveying vacuum pump −9 kPa, 4,400 NL/min
Play video

Venturi VTRF · Ref. VTRF15-3

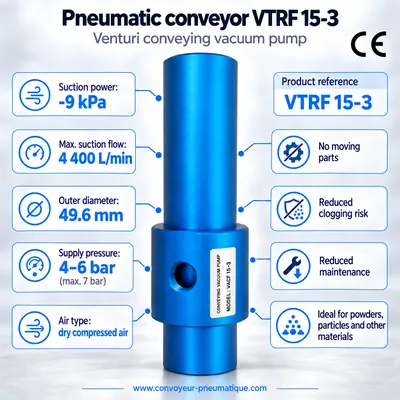

VTRF 15-3 Venturi pneumatic conveyor (−9 kPa)

Straight-through conveying vacuum pump: draws in and conveys powders, granules and small parts using compressed air alone, with no moving parts.

  • Max. vacuum−9 kPa
  • Max. suction flow4,400 NL/min
  • Inner bore (ØA)Ø 38 mm
Material
€385.00 excl. VAT i.e. €462.00 incl. VAT (FR VAT 20%)
Request a quote
  • Made to order: shipped within 1 to 2 weeks
  • Tracked shipping to France, Europe and worldwide
  • 100% secure payment: card, Apple Pay, Google Pay, SEPA
  • Free technical advice to choose the right model
VTRF range datasheet PDF document · dimensions and performance

Video

The Venturi pneumatic conveyor in action

VTRF Venturi pneumatic conveyor in operation
VTRF Venturi pneumatic conveyor in operation Demonstration of a VTRF Venturi pneumatic conveyor: suction and conveying of material with compressed air, no moving parts. Watch on YouTube · MP4

VTRF 15-3 Venturi pneumatic conveyor: description

The VTRF 15-3 Venturi pneumatic conveyor generates a maximum vacuum of −9 kPa and draws up to 4,400 NL/min. Its Ø 38 mm inner bore and Ø 49.6 mm outer diameter allow direct connection to your conveying hoses.

Its large 38 mm bore accepts bulky, light materials: edge trim, paper, cardboard or textile.

Its straight-through design ensures a completely free inner channel: material passes through the conveyor without meeting any obstacle, eliminating any risk of blockage. Compressed air is injected through the side port (K) and accelerated towards the outlet; suction flow is simply adjusted by varying the supply pressure between 4 and 6 bar.

The body is made of light, sturdy, corrosion-resistant anodised aluminium. Two tapped holes (J) allow quick mounting on your machine.

Key features of the VTRF range

  • Straight-through design: very high suction flow, no clogging possible
  • No moving parts, no mechanical wear, virtually maintenance-free
  • Six bore diameters, up to Ø 38 mm
  • Flow easily adjusted by supply pressure (4 to 6 bar)
  • Built-in mounting threads for quick installation
  • Anodised aluminium body, light and corrosion-resistant

Detailed technical specifications of the VTRF 15-3

Dimensions, performance and weight of the VTRF range: the row framed in red is the VTRF 15-3.

Dimensioned drawing of the VTRF Venturi conveyor Suction Outlet Compressed air (K) 2-J EFGH ØBØAD ØC
Schematic drawing — letters refer to the dimensions table below.

Performance: vacuum, flow and air consumption

Model Max. vacuum−kPa Suction flowNL/min Air cons. at 2.8 barNL/min Air cons. at 5.5 barNL/min Air velocitym/s
VTRF 2-3 26 295 85 160 148
VTRF 3-3 16 425 95 170 100
VTRF 5-6 35 870 395 680 110
VTRF 7-6 28 1,825 790 1,365 99
VTRF 15-3 9 4,400 405 695 68
VTRF 15-6 9 5,610 790 1,365 82

Dimensions (mm) and connections

Model ØAmm ØBmm ØCmm Dmm Emm Fmm Gmm Hmm J K
VTRF 2-3 6.5 18.5 32 30 89 19 25 18 M4 G1/8
VTRF 3-3 9.5 18.5 32 30 89 19 25 18 M4 G1/8
VTRF 5-6 12.5 24 38 34 140 25.5 32 23 M4 G1/4
VTRF 7-6 19 32 50 45 190 38 50 35 M6 G3/8
VTRF 15-3 38 49.6 69 65 205 40 60 42 M6 G3/8
VTRF 15-6 38 49.6 69 65 205 40 60 42 M6 G3/8

Weight by material (g)

Model Aluminiumg
VTRF 2-3 85
VTRF 3-3 69
VTRF 5-6 170
VTRF 7-6 388
VTRF 15-3 519
VTRF 15-6 659

Typical applications

  • Bulk material transfer between hoppers, bins and machines
  • Grain conveying: wheat, corn, coffee, food pellets
  • Powder transfer: detergent, plastic powders, additives
  • Edge trim removal during cutting operations
  • Removal of drilling and machining chips
  • Extraction of grinding and sanding dust

Need advice?

To recommend the ideal model, please prepare the following information:

  • The type of material to convey
  • The size of the items in mm (L × W × H)
  • The material density
  • The volume to convey (litres per second)
  • Abrasive or not, flammable or not
  • Dry conveying or in a wet/aquatic environment
  • The conveying distance and height (m)
  • Your installation: tubes and compressed air already in place?
Request a quote

How it works

How does a Venturi pneumatic conveyor work?

A Venturi conveyor turns compressed air into powerful suction, with no motor and no moving parts. Simply connect it to your air supply and to a conveying hose.

  1. 1
    Compressed air injection

    Air enters through the side port and fills an annular chamber around the central bore.

  2. 2
    Venturi effect

    Air is accelerated through nozzles pointing towards the outlet, creating strong vacuum at the inlet.

  3. 3
    Material suction

    Powders, granules, chips or small parts are drawn in through the inlet hose.

  4. 4
    Conveying and discharge

    The air stream carries the material to the discharge point, with no risk of clogging.

Diagram of the Venturi effect in a pneumatic conveyor 1 Compressed air 2 Venturi effect 3 Suction 4 Discharge
